Photo 1 | JST control center concept: In the control center of the Autorisierte Stelle Digitalfunk Niedersachsen (ASDN) the operators benefit from technical and ergonomically perfectly thought-out concept. Three rooms are controlled via a central system, and displays can be switched to the various proactive large screens as required.
Photo 2 | JST Operator work tables: A visually and technically successful solution: the special Stratos X11® CommandDesks in front the large screen wall.
Photo 3 | JST Operator desk: The infinitely variable electromotive height adjustment makes it possible - the special Stratos X11® CommandDesks can be individually adapted to the needs of every operator. To relieve back strain, the user can switch between sitting and standing, for example.
Photo 4 | JST DisplayWall®: The employees in the ASDN control center have a perfect view of the DisplayWall®; in this case consisting of eight 46 inch UltraSlimLine LC-Displays, that have been specially developed for 24/7 continuous operation in control rooms and offer the best values in terms of brightness, contrast ratio and color accuracy
Photo 5 | JST Furniture: JST quality - the side panels of the Stratos X11® OperatorDesks - available in various colors - with the seal of approval in brushed stainless steel.
Photo 6 | JST control room desk: Not only do the special Stratos X11® OperatorDesks meet erconomical all thinkable requirements but the control room also always has the right optics.
Photo 7 | JST Operator desk: Behind the inspection flaps there are spacious, illuminated supply rooms, in which even large quantities of cables and technology find sufficient space.
Photo 8 | JST Large screen technology: Just one of two proactive large screens that bundle all important information for the team of ASDN operators.
Photo 9 | JST large screen wall: The QuickOut mounting system offers ideal service accessibility even during operation! By slightly pressing the outer edges of the display, each individual display slides forward (quick-out).
Photo 10 | JST monitor articulated arms: The workstation monitors are attached to the operator desks with height-adjustable 3D articulated arms. They allow an optimal and individually adjustable viewing angle on all displays through a parabolic arrangement.
Photo 11 | JST Location Center: The location rooms in the ASDN are also directly connected to the main system via the JST MultiConsoling®. All representations and alarms can be routed here to be processed by a perfectly equipped team.
Photo 12 | JST Situation room: In front of the large screen in the situation room there are two ergonomically equipped operator workstations.
Photo 13 | JST conference table: The AllMedia system is far superior to conventional conference tables. Thanks to the integrated MultiConsoling® any sources on monitors, large screen displays or projectors are immediately available.
Photo 14 | JST conference table: A safe investment - even the most complex technology can be integrated into the AllMedia conference table without compromise.
Photo 15 | JST conference table: By choosing the AllMedia conference table system in trapezoid shape, an optimal viewing angle to the large screen is possible even from the rear seats.
Photo 16 | JST conference table: Thanks to integrated connector panels, notebooks and other devices can be connected directly to the AllMedia table system.
Photo 17 | JST MultiConsoling®: The myGUI - shown here on the workstation monitor in room AAO - serves as the user interface for the JST MultiConsoling®. Special advantage of the system: It is possible to display any sources (computers, cameras, etc.) in real time on workstation monitors, on individual large screen displays or as BigPicture across several large screen displays.
Photo 18 | JST MultiConsoling®: With the interactive user interface myGUI the workplace monitors as well as the displays of the large screen wall can also be controlled in the storage room BAO. The MultiConsoling® makes it possible that only one mouse and keyboard are needed per seat to operate everything in real time.
Photo 19 | JST Conference system: MultiConsoling® can also be operated quickly and intuitively via the AllMedia conference table from JST using the myGUI user interface shown here - any sources can be connected and thus used across rooms.
Photo 20 | JST CockpitView®: The special CockpitView® software – here in the AAO room of the Autorisierter Stelle Digitalfunk Niedersachsen - allows the combination of different applications on only one dashboard.
Photo 21 | JST Software: Modern alarm management in control rooms - with PixelDetection® the right information comes to the right place at the right time. Visual alarms inform the ASDN operator team about each message.
Photo 22 | JST Technology: Behind the projection screen there are wall panels with an inspection flap,...
Photo 23 | …behind which the cable guides of the AllMedia conference table have been cleverly hidden.
Photo 24 | JST Solutions: To prevent cable ducts from becoming a tripping hazard, a ramp has been installed on the premises of ASDN. Another advantage of the ramp: mobile display boards such as white boards can be easily moved around the room.

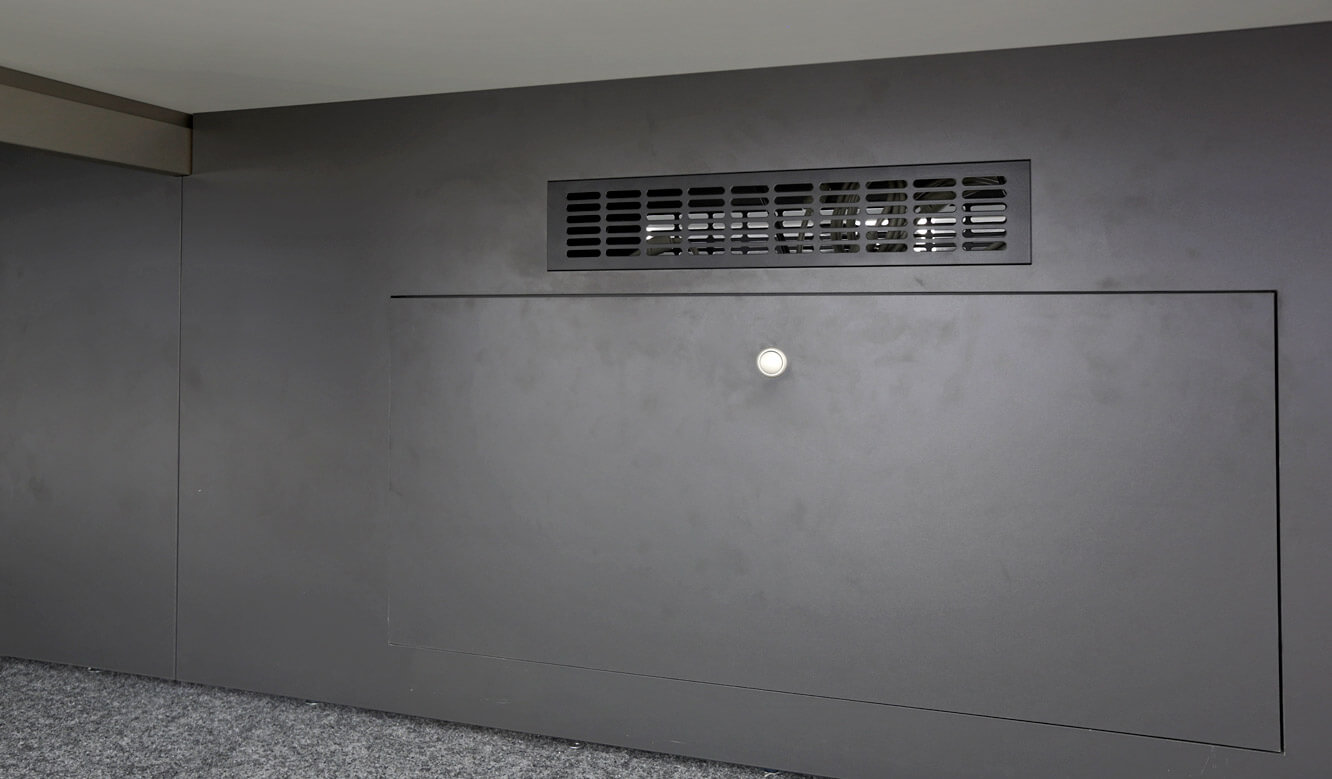

Photo 25 | JST Technology: Behind the inspection flap is a supply room for the extensive technology of the AllMedia conference table system in the situation room.
Photo 26 | JST Technology: View into the technical "heart" of the AllMedia conference table system - neatly integrated in the specially designed supply room.
Photo 27 | JST Technology: Outsourced technology in a 19-inch rack. Between the computers there are power units with the so-called "grabbers".
Photo 28 | JST Technology: At the very bottom is the JST application server (orange). Above this you can see the so-called "grabbers", which are linked to the MultiCenter, the heart of the MultiConsoling®, via the individual computers.
New control center creates secure digital radio basis
Communication is the “A” and “O”. Digital radio is used whenever firefighters go out to combat a fire, a police patrol car is called to an accident, or even hundreds of people line up to accompany major events. The access network for digital radio in Lower Saxony is monitored by ASDN (Autorisierte Stelle Digitalfunk Niedersachsen), which is assigned to the Central Police Directorate Lower Saxony. With the support of JST – Jungmann Systemtechnik® an optimal basis for the monitoring tasks of ASDN could now be created.
On the one hand: A control center which, with its many individual systems, has been repeatedly adapted to the growing requirements in small steps over the years. On the other hand: Almost 50,000 users from public authorities and organizations with security tasks, who throughout Lower Saxony are dependent on a modern and consistently highly available digital radio network. The solution: The development of a future-oriented control center that enables the control of a wide variety of systems in physically separate networks, taking into account visualization techniques as well as optical alarm options, for example.
Security features and references have convinced
Just the right job for the specialists at JST. “Jungmann was able to meet all our requirements – in a single system,” says Stefan Wächter, head of the ADSN in Hanover. It was not only the important security features that convinced the head of department, “but also JST’s many references in this relevant segment speak for themselves”.
With MultiConsoling® all sources in view
Using the proven MultiConsoling® from Jungmann Systemtechnik, all video and audio sources can be displayed on the new proactive JST large screen walls in the new ASDN control room – for example, pending alarms in the base stations or the status of the access network.
JST Location Center: The location rooms in the ASDN are also directly connected to the main system via the JST MultiConsoling®. All representations and alarms can be routed here to be processed by a perfectly equipped team.
"Perfect and comfortable solution”
A particular advantage of this technology is that the images can be displayed as individual pictures on the display walls and at the workstations or as BigPicture on the Displays of the large screen wall. In the case of ASDN, this is even possible across three different rooms equipped by JST. Stefan Wächter: “A perfect and convenient solution, enabling us to separate our daily business from processing special situations without having to do without information”.
JST MultiConsoling®: The myGUI – shown here on the workstation monitor in room AAO – serves as the user interface for the JST MultiConsoling®. Special advantage of the system: It is possible to display any sources (computers, cameras, etc.) in real time on workstation monitors, on individual large screen displays or as BigPicture across several large screen displays.
No alarm is overlooked anymore
But for the 14 employees of the ASDN control center, the Jungmann team was able to realize another highlight: “Security of the alarm monitoring was significantly increased by the JST-PixelDetection®softwarereports project manager Stefan Wächter. The system automatically detects critical situations by means of pre-defined reference values and enables alarms to be displayed visually so clearly that no message can be overlooked.
JST Large screen technology: Just one of two proactive large screens that bundle all important information for the team of ASDN operators.
"Daily work becomes much easier"
For the head of the ADSN, one thing is certain: “Our daily work is made much easier by the Jungmann system. Even specific situations – especially those that occur ad hoc – can now be handled much more professionally”.
